Description
|
Type
|
|
|
Integrated Circuits (ICs) -> Interface -> Analog Switches, Multiplexers, Demultiplexers |
Category
|
|
|
Analog Devices Inc. |
Mfr
|
|
|
SPST - NO |
Switch Circuit
|
|
|
1:1 |
Multiplexer/Demultiplexer Circuit
|
|
|
4 |
Number of Circuits
|
|
|
70Ohm |
On-State Resistance (Max)
|
|
|
- |
Channel-to-Channel Matching (ΔRon)
|
|
|
12V |
Voltage - Supply, Single (V+)
|
|
|
±15V |
Voltage - Supply, Dual (V±)
|
|
|
110ns, 60ns |
Switch Time (Ton, Toff) (Max)
|
|
|
1pC |
Charge Injection
|
|
|
4pF, 4pF |
Channel Capacitance (CS(off), CD(off))
|
|
|
500pA |
Current - Leakage (IS(off)) (Max)
|
|
|
-40°C ~ 85°C (TA) |
Operating Temperature
|
|
|
Surface Mount |
Mounting Type
|
|
|

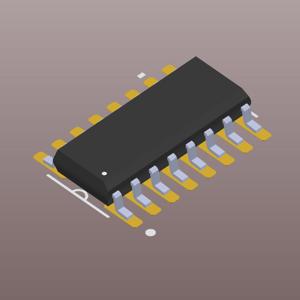

16-SOIC (0.154inch, 3.90mm Width) |
Package / Case
|
|
|
16-SOIC |
Supplier Device Package
|
|
|
ADG442 |
Base Product Number
|
