Description
|
Type
|
|
|
Integrated Circuits (ICs) -> Interface -> Analog Switches, Multiplexers, Demultiplexers |
Category
|
|
|
- |
Switch Circuit
|
|
|
8:1 |
Multiplexer/Demultiplexer Circuit
|
|
|
1 |
Number of Circuits
|
|
|
240Ohm |
On-State Resistance (Max)
|
|
|
5Ohm |
Channel-to-Channel Matching (?Ron)
|
|
|
3V ~ 20V |
Voltage - Supply, Single (V+)
|
|
|
±2.5V ~ 9V |
Voltage - Supply, Dual (V±)
|
|
|
- |
Switch Time (Ton, Toff) (Max)
|
|
|
- |
Charge Injection
|
|
|
0.2pF, 30pF |
Channel Capacitance (CS(off), CD(off))
|
|
|
100nA |
Current - Leakage (IS(off)) (Max)
|
|
|
-55°C ~ 125°C (TA) |
Operating Temperature
|
|
|
Through Hole |
Mounting Type
|
|
|

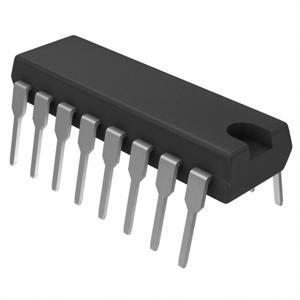

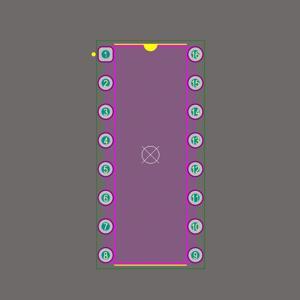

16-DIP (0.300inch, 7.62mm) |
Package / Case
|
|
|
16-PDIP |
Supplier Device Package
|
|
|
CD4051 |
Base Product Number
|
|
|
|
|
